Spherical Roller Bearings
The ultimate solution for heavy-duty misalignment. Designed to self-align under extreme stress, our Spherical Roller Bearings absorb devastating shock loads in crushing machinery, vibrating screens, and offshore drilling operations.
Key Advantages
- Automatic misalignment compensation
- Extreme shock & impact resistance
- High-capacity symmetrical rollers
Industrial Applications
Paper MillsWind TurbinesContinuous CastersVibrating Screens

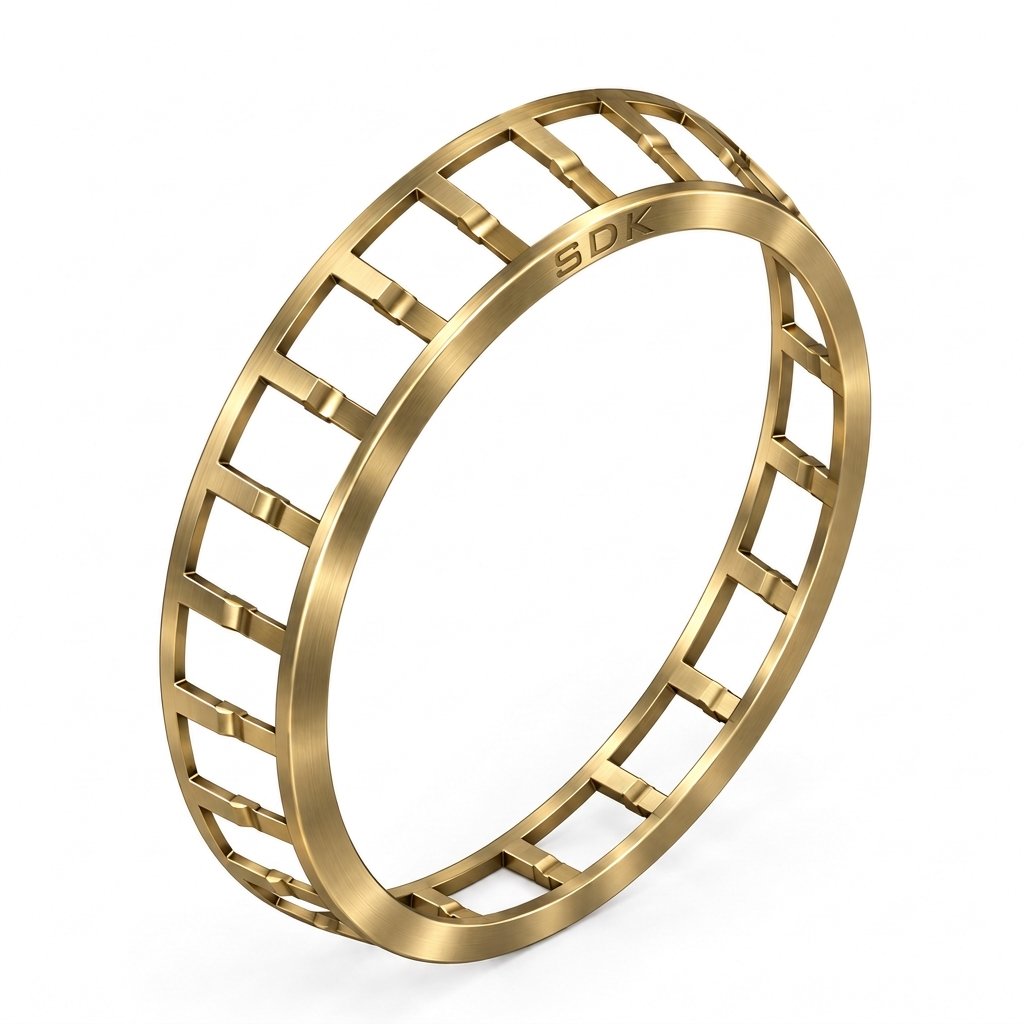

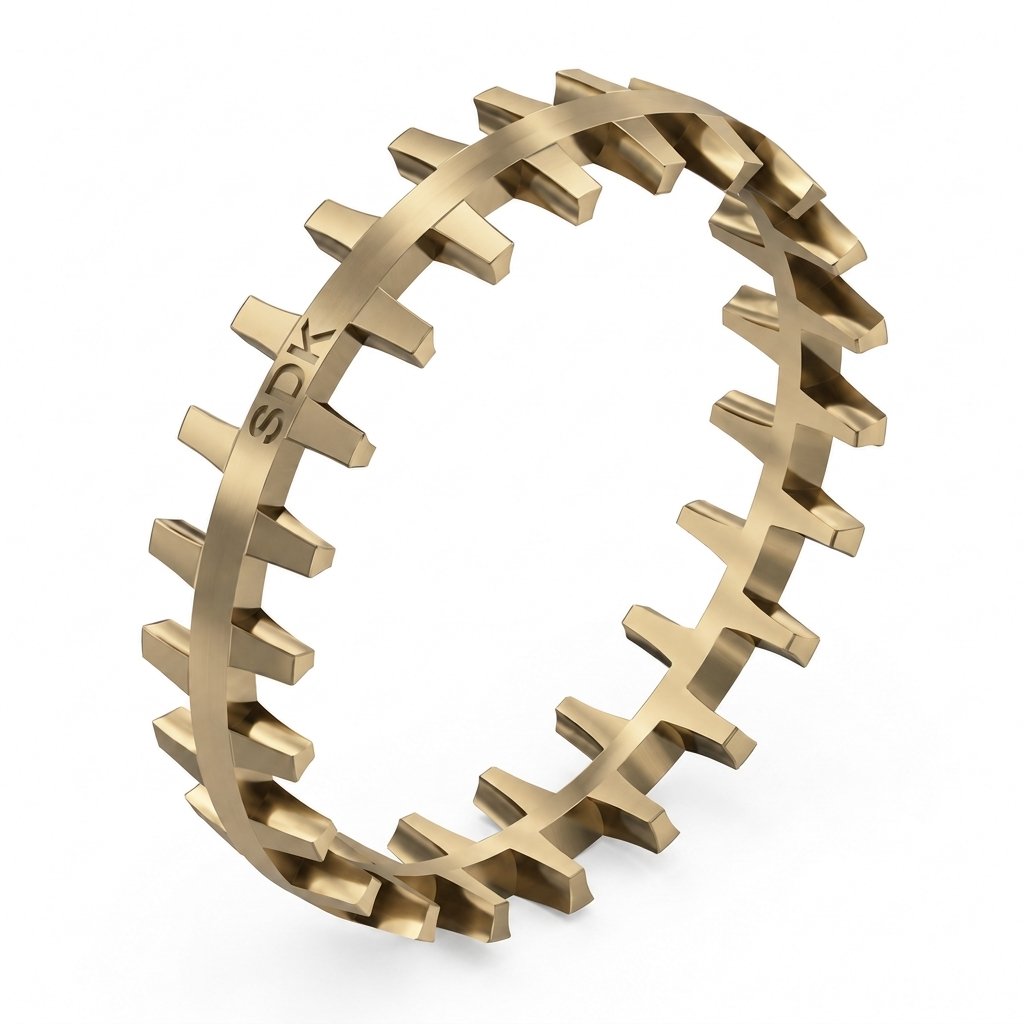

Available Cage Materials
Pressed Steel CageMachined Brass CagePolyamide (Nylon) Cage
Technical Specifications
Bore Size20mm - 500mm
RollersSymmetrical
LubricationW33 groove and holes
VibrationHigh resistance
Dimensional Data
| Designation | Bore d (mm) | Outside Diameter D (mm) | Width B (mm) | Chamfer r min (mm) | Dynamic Load C (kN) | Static Load C0 (kN) | Speed (r/min) |
|---|---|---|---|---|---|---|---|
| 22205 E | 25 | 60 | 20 | 1 | 95.6 | 76.5 | 7600 |
| 22206 E | 30 | 65 | 24 | 1 | 132.5 | 106.0 | 6900 |
| 22207 E | 35 | 75 | 26 | 1 | 175.6 | 140.5 | 6400 |
| 22208 E | 40 | 85 | 30 | 1 | 225.0 | 180.0 | 6000 |
| 22209 E | 45 | 95 | 32 | 1 | 280.6 | 224.5 | 5700 |
| 22210 E | 50 | 105 | 36 | 1.5 | 342.5 | 274.0 | 5400 |
| 22211 E | 55 | 115 | 38 | 1.5 | 410.6 | 328.5 | 5100 |
| 22212 E | 60 | 125 | 42 | 1.5 | 485.0 | 388.0 | 4900 |
| 22213 E | 65 | 135 | 44 | 1.5 | 565.6 | 452.5 | 4700 |
| 22214 E | 70 | 145 | 48 | 1.5 | 652.5 | 522.0 | 4500 |
| 22215 E | 75 | 155 | 50 | 1.5 | 745.6 | 596.5 | 4400 |
| 22216 E | 80 | 160 | 54 | 1.5 | 845.0 | 676.0 | 4200 |
| 22217 E | 85 | 170 | 56 | 1.5 | 950.6 | 760.5 | 4100 |
| 22218 E | 90 | 180 | 60 | 1.5 | 1062.5 | 850.0 | 4000 |
| 22219 E | 95 | 190 | 62 | 1.5 | 1180.6 | 944.5 | 3900 |
| 22220 E | 100 | 200 | 66 | 2 | 1305.0 | 1044.0 | 3800 |
| 22221 E | 105 | 210 | 68 | 2 | 1435.6 | 1148.5 | 3700 |
| 22222 E | 110 | 220 | 72 | 2 | 1572.5 | 1258.0 | 3600 |
| 22223 E | 115 | 230 | 74 | 2 | 1715.6 | 1372.5 | 3500 |
| 22224 E | 120 | 240 | 78 | 2 | 1865.0 | 1492.0 | 3500 |
| 22225 E | 125 | 250 | 80 | 2 | 2020.6 | 1616.5 | 3400 |
| 22226 E | 130 | 255 | 84 | 2 | 2182.5 | 1746.0 | 3300 |
| 22227 E | 135 | 265 | 86 | 2 | 2350.6 | 1880.5 | 3300 |
| 22228 E | 140 | 275 | 90 | 2 | 2525.0 | 2020.0 | 3200 |
| 22229 E | 145 | 285 | 92 | 2 | 2705.6 | 2164.5 | 3200 |
| 22230 E | 150 | 295 | 96 | 2 | 2892.5 | 2314.0 | 3100 |
| 22231 E | 155 | 305 | 98 | 2 | 3085.6 | 2468.5 | 3000 |
| 22232 E | 160 | 315 | 102 | 2 | 3285.0 | 2628.0 | 3000 |
| 22233 E | 165 | 325 | 104 | 2 | 3490.6 | 2792.5 | 3000 |
| 22234 E | 170 | 335 | 108 | 2 | 3702.5 | 2962.0 | 2900 |
| 22235 E | 175 | 345 | 110 | 2 | 3920.6 | 3136.5 | 2900 |
| 22236 E | 180 | 350 | 114 | 2 | 4145.0 | 3316.0 | 2800 |
| 22237 E | 185 | 360 | 116 | 2 | 4375.6 | 3500.5 | 2800 |
| 22238 E | 190 | 370 | 120 | 2 | 4612.5 | 3690.0 | 2800 |
| 22239 E | 195 | 380 | 122 | 2 | 4855.6 | 3884.5 | 2700 |
| 22240 E | 200 | 390 | 126 | 3 | 5105.0 | 4084.0 | 2700 |
| 22241 E | 205 | 400 | 128 | 3 | 5360.6 | 4288.5 | 2700 |
| 22242 E | 210 | 410 | 132 | 3 | 5622.5 | 4498.0 | 2600 |
| 22243 E | 215 | 420 | 134 | 3 | 5890.6 | 4712.5 | 2600 |
| 22244 E | 220 | 430 | 138 | 3 | 6165.0 | 4932.0 | 2600 |
| 22245 E | 225 | 440 | 140 | 3 | 6445.6 | 5156.5 | 2500 |
| 22246 E | 230 | 445 | 144 | 3 | 6732.5 | 5386.0 | 2500 |
| 22247 E | 235 | 455 | 146 | 3 | 7025.6 | 5620.5 | 2500 |
| 22248 E | 240 | 465 | 150 | 3 | 7325.0 | 5860.0 | 2400 |
| 22249 E | 245 | 475 | 152 | 3 | 7630.6 | 6104.5 | 2400 |
| 22250 E | 250 | 485 | 156 | 3 | 7942.5 | 6354.0 | 2400 |
| 22251 E | 255 | 495 | 158 | 3 | 8260.6 | 6608.5 | 2400 |
| 22252 E | 260 | 505 | 162 | 3 | 8585.0 | 6868.0 | 2400 |
| 22253 E | 265 | 515 | 164 | 3 | 8915.6 | 7132.5 | 2300 |
| 22254 E | 270 | 525 | 168 | 3 | 9252.5 | 7402.0 | 2300 |
Showing 1 to 50 of 250 entries
